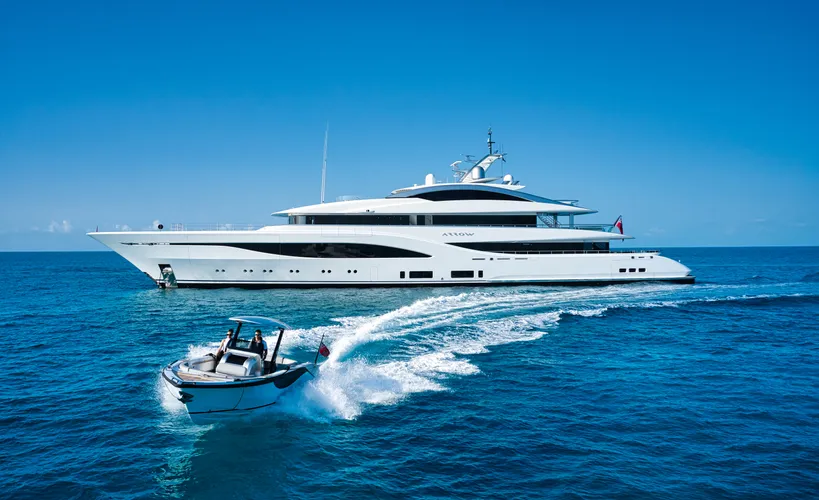

Arrow is a 75.0 m Motor Yacht, built by Feadship and delivered in 2020.
Her top speed is 17.5 kn and she boasts a maximum range of 7278.0 nm when navigating at cruising speed, with power coming from two MTU diesel engines. She can accommodate up to 12 guests in 6 staterooms, with 19 crew members. She has a gross tonnage of 1890.0 GT and a 12.9 m beam, and she is built with a Teak deck, a Steel hull, and Aluminium superstructure.
She was designed by H2 Yacht Design, who also designed the interior. H2 Yacht Design has designed 29 yachts and designed the interior of 60 yachts for yachts above 23 metres.
The naval architecture was developed by Feadship De Voogt Naval Architects, who has developed 111 other superyachts in the BOATPro database.
Arrow is in the top 5% by LOA in the world. She is one of 138 motor yachts in the 70-80m size range, and, compared to similarly sized motor yachts, her top speed is 0.07 kn above the average, and her volume 70.27 GT above the average.
Specifications
Overview
- Name:Arrow
- Yacht Type:Motor Yacht
- Yacht Subtype:Displacement
- Builder:Feadship
- Naval Architect:Feadship De Voogt Naval Architects
- Exterior Designer:H2 Yacht Design
- Interior Designer:H2 Yacht Design
Dimensions
- Length Overall:75 metres
- Length at Waterline:66.1 metres
- Beam:12.9 metres
- Max Draught:3.8 metres
- Gross Tonnage:1890 GT
Construction
- Builder:Feadship
- Year of Build:2020
- Hull Number:703
- Hull Type:Full Displacement
- Number of Decks:3
- Classification:LR
Performance & Capacities
- Max Speed:17.5 kn
- Cruising Speed:13.5 kn
- Fuel Capacity:185000 litres
- Water Capacity:62000 litres
- Range:7278 nm
- Range Speed:13.5 kn
Engines
- Engine Make:MTU
- Total power:4934
Materials
- Hull:Steel
- Superstructure:Aluminium
- Deck:Teak
Accommodation
- Guests:12
- Cabins:6
