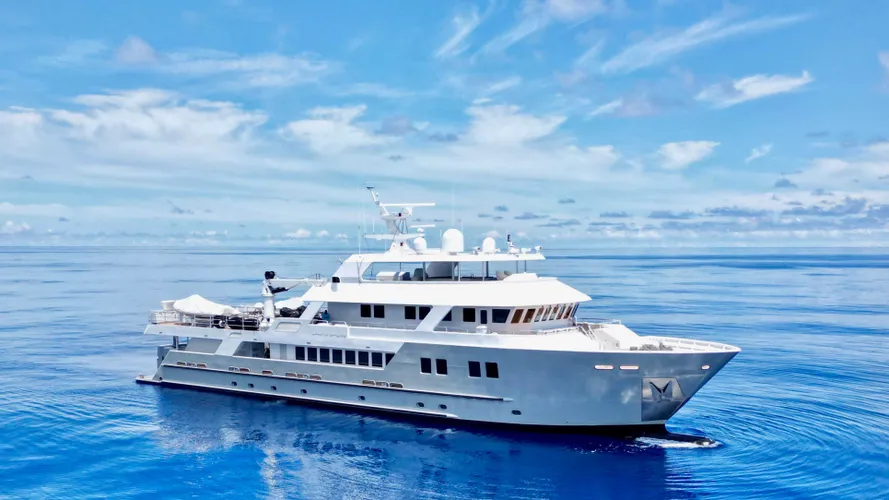

COMPASS ROSE is a 160’ (48.8m) aluminum long-range displacement yacht built by C & G Boatworks in 2011 and refit in 2015. Designed and engineered for global cruising, she delivers the range, systems redundancy and operational capability often associated with significantly larger expedition platforms, while remaining within the highly desirable 50-metre class. Constructed with an aluminum hull and superstructure and measuring approximately 621 gross tons, she pairs strength and efficiency with impressive volume in a well-balanced explorer profile.
Powered by twin Caterpillar 3508B main engines, COMPASS ROSE cruises comfortably at 12 knots, reaches a maximum speed of 15 knots and offers an impressive range of over 9,000 nautical miles at 10 knots. Offshore credentials are reinforced by substantial fuel capacity, gravity-fed day tanks, a fuel centrifuge purification system and a double-hull fuel tank configuration.
Her engineering infrastructure is built around autonomy and redundancy, with three 100 kW generators, emergency battery reserves, redundant sea chests, extensive fuel and oil management systems, oversized tankage and commercial-grade electrical installations. Two high-capacity watermakers, copper-nickel raw water plumbing and Hydro-Pac water pressure regulation further support extended remote operations. Practical serviceability is also a priority, with soft patches in the decks allowing crane access to the engine room.
Accommodations are configured for 10 guests in five staterooms, including a king master, three queen VIP, and one double twin cabin. Crew quarters accommodate up to 10 in five cabins, allowing for a fully staffed program suitable for extended cruising. The yacht’s 36-foot beam provides generous interior volume and comfortable living spaces throughout.
Key Features
- 9,000+ NM range at 10 knots
- Aluminum hull & superstructure
- 5-stateroom layout for 10 guests
- Crew accommodations for up to 10 in 5 cabins
- Twin Caterpillar 3508B engines (1,050 HP each)
- Extensive tender and toy inventory
- 621 GT of interior volume
Specifications
Overview
- Name:COMPASS ROSE
- Yacht Type:Motor Yacht
- Builder:C. & G. Boatworks
- Naval Architect:D. Marine Design
- Exterior Designer:D. Marine Design
- Interior Designer:D. Marine Design
- Refits:2015-01-01
Dimensions
- Length Overall:49.2 metres
- Length at Waterline:23 metres
- Beam:10.97 metres
- Max Draught:2.29 metres
- Gross Tonnage:621
Construction
- Builder:C. & G. Boatworks
- Year of Build:2011
- Hull Number:242
- Hull Type:Semi Displacement
Performance & Capacities
- Max Speed:15 kn
- Cruising Speed:12 kn
- Fuel Capacity:195764 litres
- Water Capacity:22712 litres
- Range:9000 nm
- @ 10 kn
Engines
- Engine Make:General Motors
- Total power:1800hp
Materials
- Hull:Aluminium
- Superstructure:Aluminium
- Deck:Aluminium,Teak
Accommodation
- Guests:10
- Passenger Rooms:5
- Master Rooms:1
- Double Rooms: 3
- Twin Rooms:1
